How to Test Installed Valves Before System Commissioning

Before Startup Day — The Quiet Checks That Prevent Loud Problems

a phase in every HVAC or plumbing project that doesn’t get much attention, but experienced engineers take it seriously.

Right before system commissioning.

Installation is complete. Drawings are marked up. Controls are wired. Everyone is preparing for a startup. But this is exactly when installed valves should be tested calmly, methodically, before the system is exposed to full operating pressure and dynamic flow.

Because once the system goes live, mistakes don’t stay small.

Pre-commissioning valve testing isn’t about slowing progress. It’s about preventing callbacks, shutdowns, and awkward post-handover explanations.

What “Pre-Commissioning Valve Testing” Really Means

Testing installed valves before commissioning means verifying that each valve:

• Is installed correctly

• Operates through its full range

• Responds as designed

• Seals properly where required

• Matches the drawings and tag schedule




This happens before full system startup when corrections are still easy, access is still open, and responsibility is still clearly assigned.

It’s a verification window. Once missed, it’s hard to recreate.

Start With a Physical and Visual Verification

The first step is simple and often rushed.

A careful visual inspection catches more issues than people expect. Not from theory, but from field reality.

Check for:

• Flow direction arrows matching pipe flow

• Valve type matching the BOQ/drawings

• Correct size and pressure class

• Accessible handle or actuator clearance

• Proper flange alignment

• Tag numbers matching documentation




Many later “performance issues” are traced back to basic mismatches that were visible on day one.

Walk the line. Don’t just review the drawing.

Manually Operate Every Accessible Valve

If a valve is meant to move, move it.

Manual cycling is one of the most revealing early tests. It confirms that nothing is jammed, over-tightened, obstructed, or misaligned.

During manual operation, observe:

• Smoothness of movement

• Full open and full close reach

• Excessive resistance

• Unusual sounds

• Stem wobble or binding




A valve that feels wrong during manual operation usually is wrong. This is the best time to correct it before pressure adds force to the problem.

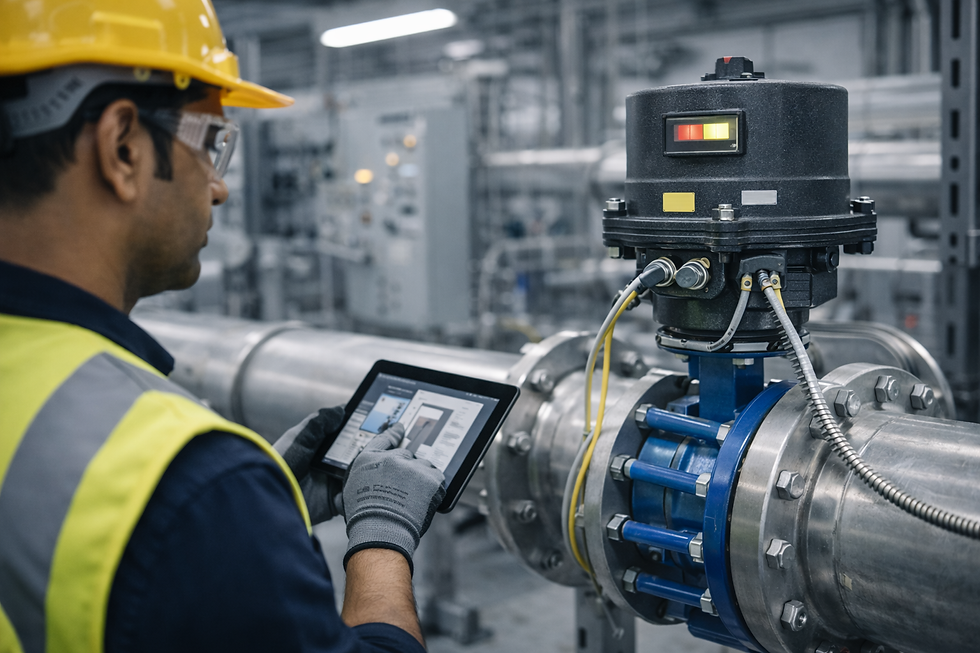

Verify Actuator and Control Response (For Motorised Valves)

Motorised and control valves need more than movement; they need a correct response.

Before commissioning, confirm:

• Correct wiring termination

• Control signal reception

• Full stroke travel

• Correct open/close position feedback

• Fail-safe position behaviour (if applicable)




A quick stroke test from the control panel or local controller often exposes reversed signals, partial travel limits, or calibration gaps.

Don’t assume the controls team already verified it; cross-checking saves coordination disputes later.

Perform Seat and Shutoff Checks Where Required

Isolation valves and critical control valves should be checked for shutoff integrity before full commissioning.

This doesn’t always require a full pressure test yet, but it does require confirmation that:

• The valve fully closes

• There is no visible bypass leakage

• Downstream pressure behaviour matches expectation




Even a basic staged fill test can reveal whether a closed valve is actually isolating or only appearing to.

Confirm Balancing and Measuring Points Are Usable

Balancing valves are often installed correctly but left unprepared for actual measurement.

Before commissioning day, verify:

• Test ports are accessible

• Caps are intact

• Ports are not blocked with debris or paint

• Identification labels are readable




If measurement points aren’t usable, balancing cannot happen properly, and system efficiency suffers quietly for years.

Use Low-Risk Pressure or Flush Tests First

Before full operating pressure is introduced, staged low-risk tests help validate readiness.

These include:

• Controlled flushing

• Gradual pressure build tests

• Sectional pressurization

• Gauge stability observation




Watch how valves behave as pressure rises, not just at the final pressure. Early-stage behaviour often reveals weak joints or seating issues.

Slow testing is faster than emergency repair.

Record What You Verify — Not What You Expect

Pre-commissioning valve testing only adds value if it’s recorded clearly.

Not long reports. Just factual records:

• Valve tag tested

• Operation confirmed

• Issues found (if any)

• Corrections made

• Date and tester name




These notes become extremely useful during commissioning and handover. They show that verification happened, not just installation.

A Simple Truth From the Field

Most valve problems don’t start under full load. They start quietly, before commissioning, when no one looks twice.

Testing installed valves before system commissioning is not extra work. It’s the final installation step done properly.

When this phase is handled with care, commissioning becomes smoother, balancing becomes easier, and system behaviour becomes more predictable.

And in commercial projects, predictability is everything.
